10kw all in one solar battery control cabinet off grid inverter house 160a
from $761.00
Product Description
OPY 48V Paralleling Solar Inverter Charger
|
Item
|
HF4830S60
|
HF4850S80
|
|
| ||
|
Rated input voltage
|
220/230Vac
|
110/120Vac
|
|
Output voltage waveform
|
Pure sine wave
|
|
|
Rated output power (W)
|
5000W
|
3500W
|
|
Peak power
|
10000VA
|
6000VA
|
|
Parallel connection
|
1-6 units
| |
|
Max paralleling output power (KW)
|
30KW
|
21KW
|
|
Rated battery input voltage
|
48V (minimum start voltage 44V)
|
|
|
Battery type
|
Lead acid or Lithium battery
|
|
|
Charge voltage range
|
40 –58Vdc
|
|
|
PV operate voltage range
|
60-145Vdc
|
|
|
Max PV output power
|
4200W
|
|
|
PV charging current range (settable)
|
0-80A
| |
|
Communication interface
|
USB/RS485(WiFi/GPRS)/Dry node control
|
|
|
Dimension (L*W*D)
|
426mm*322mm*124mm
|
|
|
Weight (kg)
|
10.8kg
|
|
|
Warranty
|
1 year
|
|
|
|
| |
|
|
|
Main Featrures:
1. Parrelleling connection for max 30KW solar system.
2. Split phase output:
1 phase output: AC 110V or 220V.
2 phase output: AC 120V or 240V.
3 phase output: AC 120V or 208V or 398V.
3. Pure sine wave solar inverter. 4. MPPT charger controller inside, efficiency ≥99.9%. 5. Flexible battery charging:
Support both AC and solar dc charging. 6. Two type output voltage:
AC 110V/220V or DC 12/48V 7. Support both lithium and lead acid battery. 8. Perfect protection. Undervoltage, short-circuit, overloading and backflow protection. 9. Wifi&GPRS available for mobile phone monitor.
.
Output Power:
Application:
Quantity:
Product Description
OPY 48V Paralleling Solar Inverter Charger
|
Item
|
HF4830S60
|
HF4850S80
|
|
| ||
|
Rated input voltage
|
220/230Vac
|
110/120Vac
|
|
Output voltage waveform
|
Pure sine wave
|
|
|
Rated output power (W)
|
5000W
|
3500W
|
|
Peak power
|
10000VA
|
6000VA
|
|
Parallel connection
|
1-6 units
| |
|
Max paralleling output power (KW)
|
30KW
|
21KW
|
|
Rated battery input voltage
|
48V (minimum start voltage 44V)
|
|
|
Battery type
|
Lead acid or Lithium battery
|
|
|
Charge voltage range
|
40 –58Vdc
|
|
|
PV operate voltage range
|
60-145Vdc
|
|
|
Max PV output power
|
4200W
|
|
|
PV charging current range (settable)
|
0-80A
| |
|
Communication interface
|
USB/RS485(WiFi/GPRS)/Dry node control
|
|
|
Dimension (L*W*D)
|
426mm*322mm*124mm
|
|
|
Weight (kg)
|
10.8kg
|
|
|
Warranty
|
1 year
|
|
|
|
| |
|
|
|
Main Featrures:
1. Parrelleling connection for max 30KW solar system.
2. Split phase output:
1 phase output: AC 110V or 220V.
2 phase output: AC 120V or 240V.

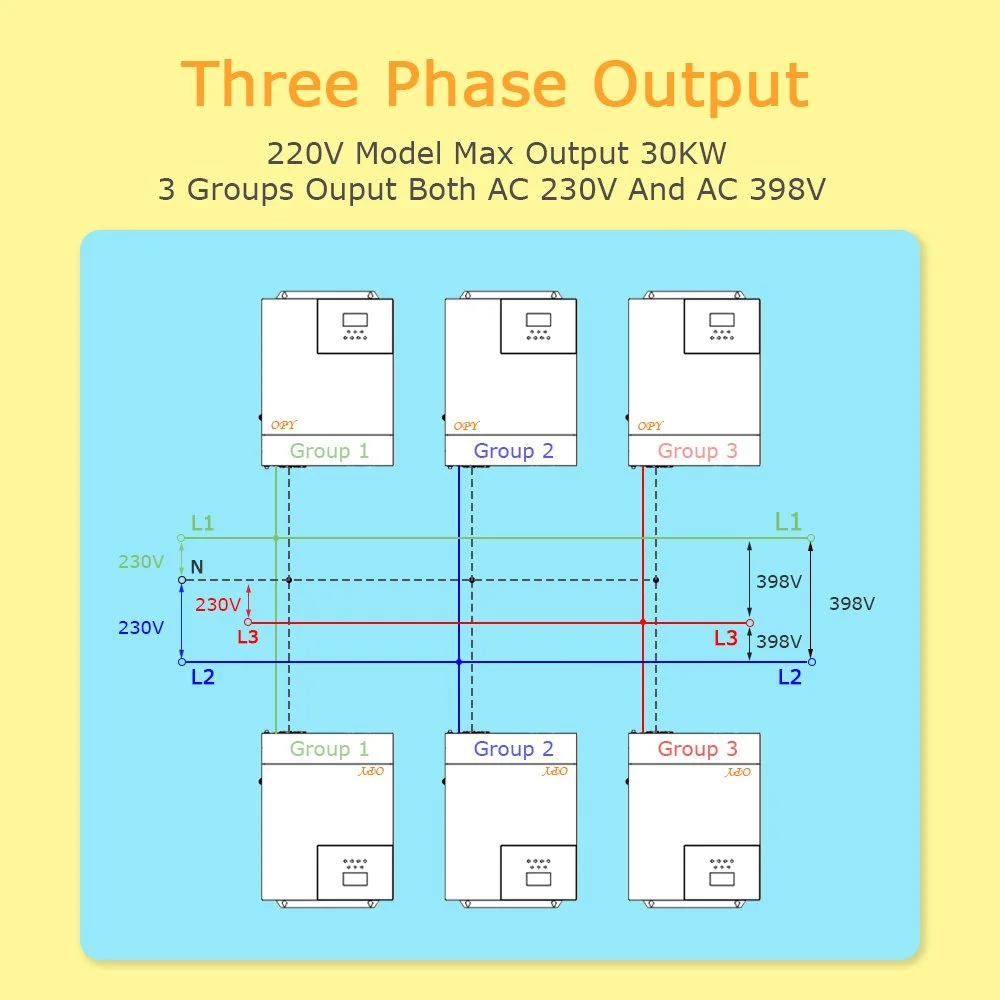

3 phase output: AC 120V or 208V or 398V.
3. Pure sine wave solar inverter. 4. MPPT charger controller inside, efficiency ≥99.9%. 5. Flexible battery charging:
Support both AC and solar dc charging. 6. Two type output voltage:
AC 110V/220V or DC 12/48V 7. Support both lithium and lead acid battery. 8. Perfect protection. Undervoltage, short-circuit, overloading and backflow protection. 9. Wifi&GPRS available for mobile phone monitor.
.
Product Description
OPY 48V Paralleling Solar Inverter Charger
|
Item
|
HF4830S60
|
HF4850S80
|
|
| ||
|
Rated input voltage
|
220/230Vac
|
110/120Vac
|
|
Output voltage waveform
|
Pure sine wave
|
|
|
Rated output power (W)
|
5000W
|
3500W
|
|
Peak power
|
10000VA
|
6000VA
|
|
Parallel connection
|
1-6 units
| |
|
Max paralleling output power (KW)
|
30KW
|
21KW
|
|
Rated battery input voltage
|
48V (minimum start voltage 44V)
|
|
|
Battery type
|
Lead acid or Lithium battery
|
|
|
Charge voltage range
|
40 –58Vdc
|
|
|
PV operate voltage range
|
60-145Vdc
|
|
|
Max PV output power
|
4200W
|
|
|
PV charging current range (settable)
|
0-80A
| |
|
Communication interface
|
USB/RS485(WiFi/GPRS)/Dry node control
|
|
|
Dimension (L*W*D)
|
426mm*322mm*124mm
|
|
|
Weight (kg)
|
10.8kg
|
|
|
Warranty
|
1 year
|
|
|
|
| |
|
|
|
Main Featrures:
1. Parrelleling connection for max 30KW solar system.
2. Split phase output:
1 phase output: AC 110V or 220V.
2 phase output: AC 120V or 240V.
3 phase output: AC 120V or 208V or 398V.
3. Pure sine wave solar inverter. 4. MPPT charger controller inside, efficiency ≥99.9%. 5. Flexible battery charging:
Support both AC and solar dc charging. 6. Two type output voltage:
AC 110V/220V or DC 12/48V 7. Support both lithium and lead acid battery. 8. Perfect protection. Undervoltage, short-circuit, overloading and backflow protection. 9. Wifi&GPRS available for mobile phone monitor.
.
